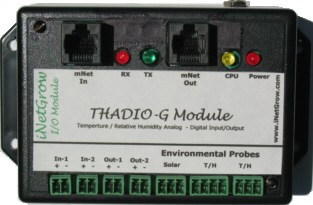

THADIO-G Module
 Temperature / Humidity Analog Digital Input/Output Modules contain temperature and relative humidity inputs, an analog input as well as optically coupled digital inputs and outputs.

THADIO-G Module Specifications:

   2 opto-isolated digital inputs (5-24V AC or DC).
  2 opto-isolated digital outputs. (Outputs can handle 36V AC or DC when off and conduct up to 250 mA when on.)
  2 channels for Smart T/H probes which require no calibration.
  1 analog input. The standard resistor values are set for the iNetGrow Solar Probes. Analog ranges can be custom set at the factory for different applications.
1 beeper which may be used to signal alarm conditions set-up in the iNetGrow Software.
Standard industrial, pluggable, terminal blocks for quick connect/disconnect of inputs and outputs.
