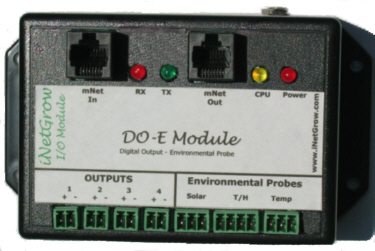

DO-E Module
The Digital OutPut Module has four digital outputs and three inputs for smart environmental probes.

DO-E Module Specifications:
  4 opto-isolated digital outputs. (Outputs can handle 36V AC or DC when off and conduct up to 250 mA when on.)
  1 channel for a T-SP1 smart temperature probe.
  1 channel for a T/H-SP Probe.
  1 analog input. The standard resistor values are set for the iNetGrow Solar Probes. Analog ranges can be custom set at the factory for different applications.
1 beeper which may be used to signal alarm conditions set-up in the iNetGrow Software.
Standard industrial, pluggable, terminal blocks for quick connect/disconnect of inputs and outputs.
